Karcher Puzzi Carpet and Upholstery Cleaner 8/1C (Germany)

Size: 530(L) x 330(W) x 440(H)mm

Product Code : Karcher Puzzi 8/1C

Quantity :
Share :

Loading ...

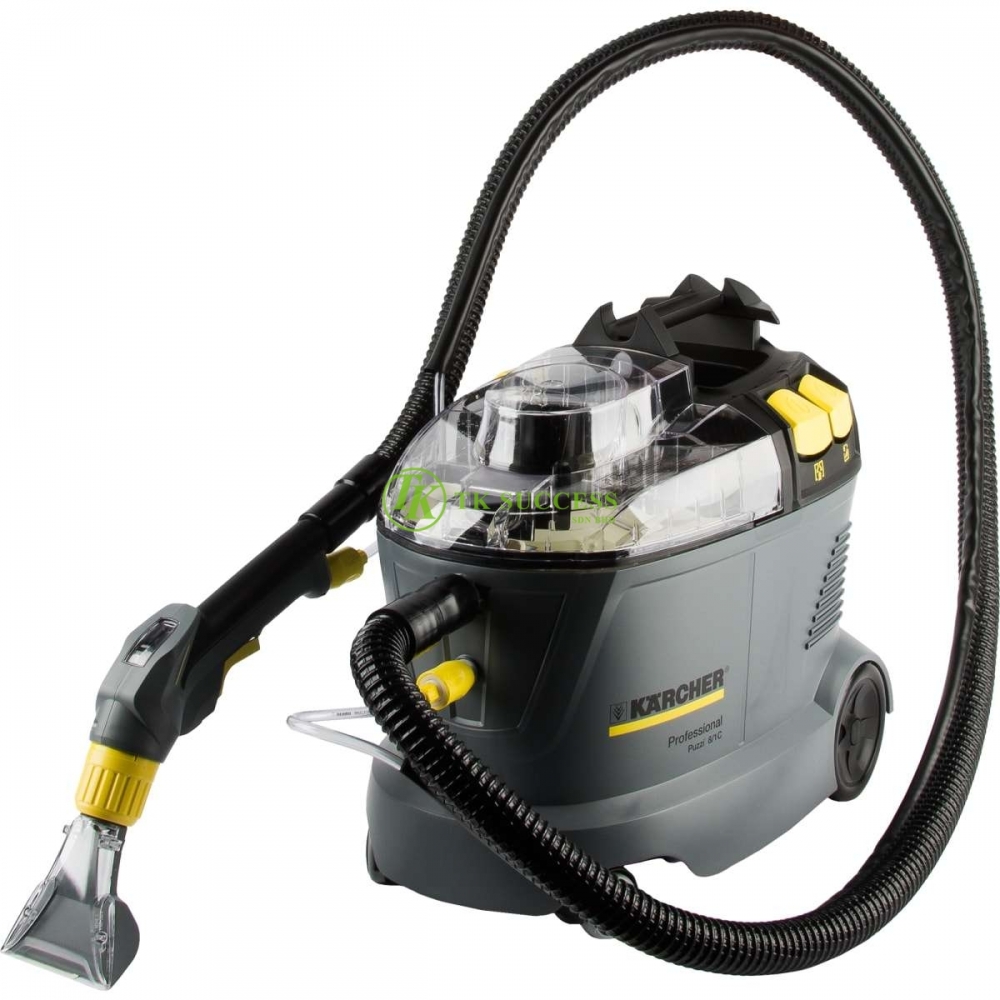

The Puzzi 8/1 C is a powerful entry-level spray extraction machine. The spray extraction machine can be used for upholstery cleaning or for removing stains on carpets. Because an extremely small amount of residual moisture remains after cleaning, cleaned carpets and upholstery can be quickly used again. Equipped as standard with a spray vacuum hose and ergonomic hand nozzle.


Kärcher Puzzi 8/1 C Carpet and Upholstery Cleaner is a powerful and compact carpet and upholstery cleaning machine. This category of machines is also referred to as spray extraction machines or spray extraction cleaners.

Kärcher Puzzi’s offer the best return suction results of all comparable competitor machines. The Kärcher Puzzi 8/1 C Carpet and Upholstery Cleaner allows textile surfaces to be used again in a very short time.

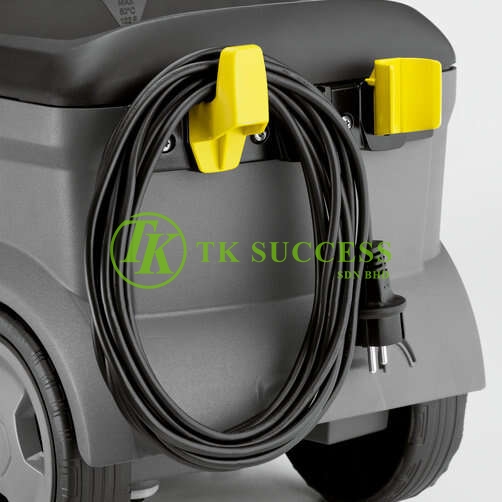

This carpet and upholstery cleaning machine was designed for maximum ease of use and operator comfort as well as being light and compact enough to easily be carried up and down stairs and loaded in a compact car boot. All of the accessories can be stored on the machine and it can be carried in one hand. The suction hose can be rolled up and stored in the fresh water tank. The power cable can be rolled up and stored on a fold-out hook and the upholstery nozzle placed in the integrated nozzle holder.

This machine excludes a carpet tool, but it can be purchased separately to enable cleaning on carpeted areas. Change over from upholstery to carpet tool is a simple operation and only requires twisting of the locking-ring and disconnecting the water coupling then removing the tool.

Low weight

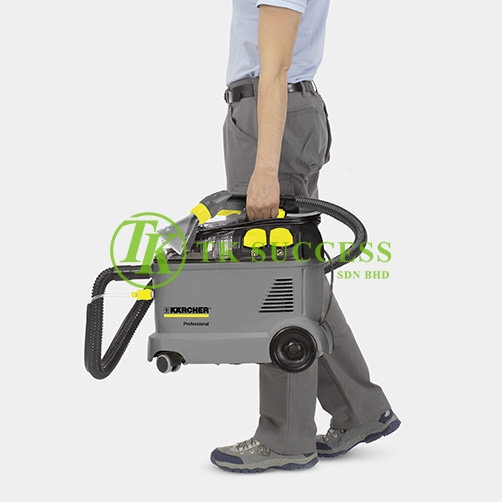

Weighing only 9.8 kilograms, this machine is around 35 percent lighter than comparable machines. Easily transported, even over obstacles and stairs. Integrated carrying handle for transport with one hand.

Compact design
The Puzzi 8/1 C also shows its strengths when cleaning upholstery and vehicle interiors. Compact, space-saving design. Long-lasting, robust and thus very economical machine.

Removable, smart 2-in-1 container
Quick and simple to fill the fresh water tank. Convenient and simple to remove dirty water.


Technical data

Max. area performance (m²/h) 12 – 18
Air flow (l/s) 61
Vacuum (mbar/kPa) 230 / 23
Spray volume (l/min) 1
Spray pressure (bar) 1
Tank of fresh/dirty water (l) 8 / 7
Turbine capacity (W) 1200
Pump capacity (W) 40
Supply voltage (V/Hz) 220 – 240 / 50 – 60
Weight without accessories (kg) 9.8
Weight incl. packaging (kg) 13.4
Dimensions (L x W x H) (mm) 530 x 330 x 440

Equipment on the Kärcher Puzzi 8/1 C Carpet and Upholstery Cleaner

  • Power cable, 7.5 m
  • Upholstery nozzle
  • Spray/suction hose, 2.5 m
  • Integrated accessory storage for upholstery/crevice nozzle
  • Handle with dirty water inspection window
  • Removable 2-in-1 container for fresh/dirty water
